Drip Irrigation Kit With Timer: 7 Top Choices for Easy Setup

Wondering if a drip irrigation kit with timer can finally end the daily watering chore on your garden or small plot? Yes, it can, when you match the kit to your setup correctly. This guide walks through components, timer types, kit categories, install steps, and the 7 top picks worth checking.

A drip irrigation kit with timer is a complete watering system that pairs a programmable hose-bibb timer with low-flow drippers, tubing, a filter, and a pressure regulator. The timer runs your schedule. Drippers release water at the root zone. Compared to overhead sprinklers, drip systems cut water use by 30 to 60 percent, per land-grant extension research.

A Quick Comparison: 7 Drip Irrigation Kits With Timer

← Previous | Next →

Preview	#1 Best Overall	#2	#3	#4	#5	#6	#7
Title	MQJIAZHI MX-G10AA0 246FT Drip Irrigation System	Deepoter Drip Irrigation System A01	ANLEOLIFE 82.4FT Automatic Kit	Raindrip R560DP Automatic Drip Irrigation System	Orbit 61014 Automatic Garden Box Irrigation System	HIRALIY-50FT-2ZONE	HEKIWAY Irrigation System-15 Pot
Price	$67.99 – 05.10.2026 See Latest Price	$61.99 – 05.10.2026 See Latest Price	$61.99 – 05.10.2026 See Latest Price	$35.98 – 05.10.2026 See Latest Price	$69.95 – 05.10.2026 See Latest Price	$52.99 – 05.10.2026 See Latest Price	$33.99 – 05.10.2026 See Latest Price
Overall Score	96	95	100	84	82	85	80
Tubing Length	246 ft	165 ft	82.4 ft	75 ft	50 ft	50 ft	49 ft
Plant/Area Capacity	15 pots	28 emitters	2 zones	20 plants	64 sq ft (1 bed)	12 drippers, 2 zones	15 pots
Power Source	Solar + Type-C USB	Battery	Battery	Battery	Battery	Battery	Solar + Type-C USB
Timer Type	Digital, 25 modes	Programmable	LCD, 8 schedules	Programmable	1-outlet digital	2-zone digital	Digital, 25 modes
Connectors	Brass	Solid brass	Quick-connect, copper	Threaded + barbed	Drip-Lock plastic	Push-to-connect plastic	ABS plastic

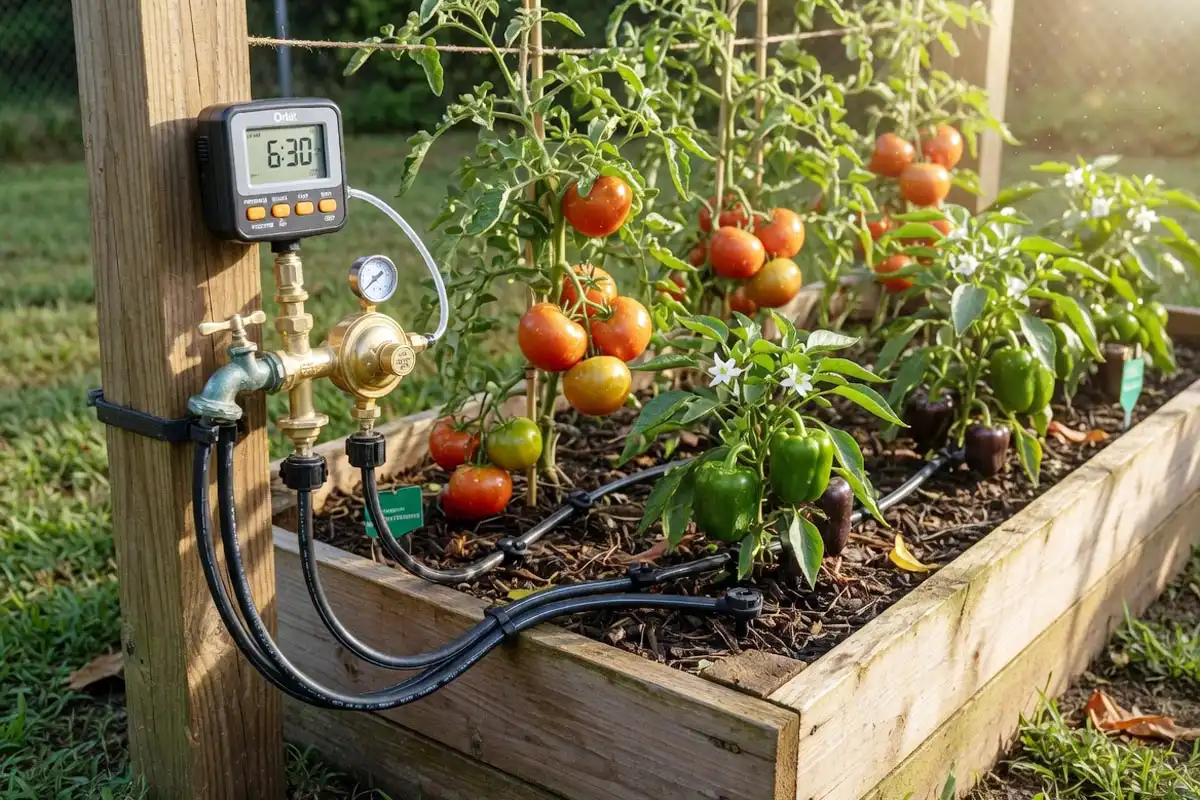

What Is a Drip Irrigation Kit With Timer?

A drip irrigation kit with timer bundles every part needed to water plants on a set schedule. The timer screws onto your outdoor faucet. It opens and closes the line at the days and hours you program.

Behind the timer, a filter catches grit. A pressure regulator drops home water pressure to a safe range for the tubing, usually 25 or 30 PSI.

Mainline tubing carries water across the bed. Drippers release water slowly at each plant. Fittings, stakes, and end caps hold the layout in place.

The payoff is targeted watering at the root zone, less runoff, fewer fungal problems, and no daily hand watering. For a head-to-head look at how this method stacks up against overhead methods, see my comparison of drip and sprinkler watering.

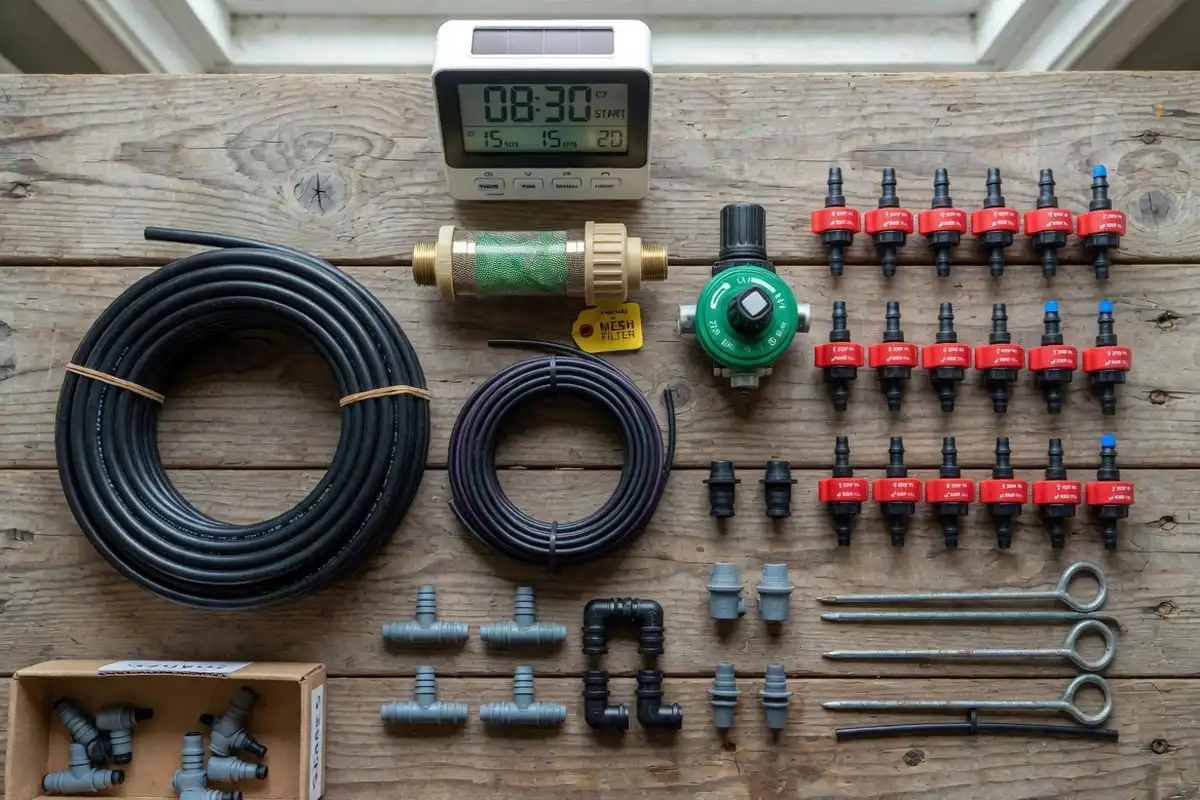

What’s Inside a Complete Drip Irrigation Kit With Timer?

A standard kit on the shelf today usually contains:

• Programmable timer: controls run time and frequency at the faucet.
• Filter: screens out particles that clog emitters.
• Pressure regulator: drops pressure to 25 or 30 PSI for safe drip flow.
• ½-inch mainline tubing: the backbone line that carries water from the source.
• ¼-inch micro tubing: branches off the mainline to reach individual plants.
• Pressure-compensating drippers: emit a steady GPH rate even on slopes.
• Fittings: tees, elbows, couplings, and end caps for layout flexibility.
• Stakes and hold-downs: keep tubing in place across the bed.

Better kits also include a hose adapter with FHT thread and a punch tool. If your kit skips the regulator or filter, plan to add both. They protect the system from clogs and burst lines.

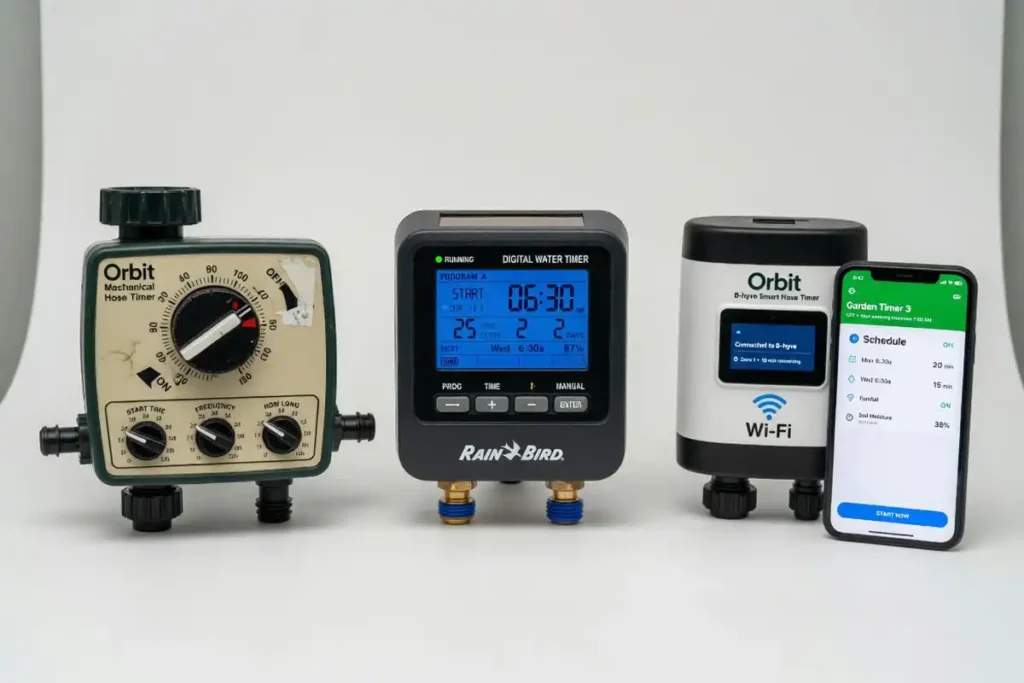

Types of Timers Used in Drip Irrigation Kits

Timers fall into three buckets. Each one has a place depending on your setup and budget.

Mechanical Hose-Bibb Timers

A mechanical timer uses a dial or knob. You set a run time, water flows for that long, then it shuts off. No batteries. No programming. These work for one-off cycles and are the most reliable in cold weather.

Digital Programmable Timers

Digital timers run on AAA batteries and an LCD screen. You can program multiple start times per day, set frequency by day of week, and use a rain delay. Most kits in the $40 to $100 range pair with this type.

Smart Wi-Fi Timers

Smart timers like the Orbit B-hyve connect to your phone over Wi-Fi or Bluetooth. The app pulls local weather data and skips watering when rain is in the forecast. They cost more but pay back over a season on water savings.

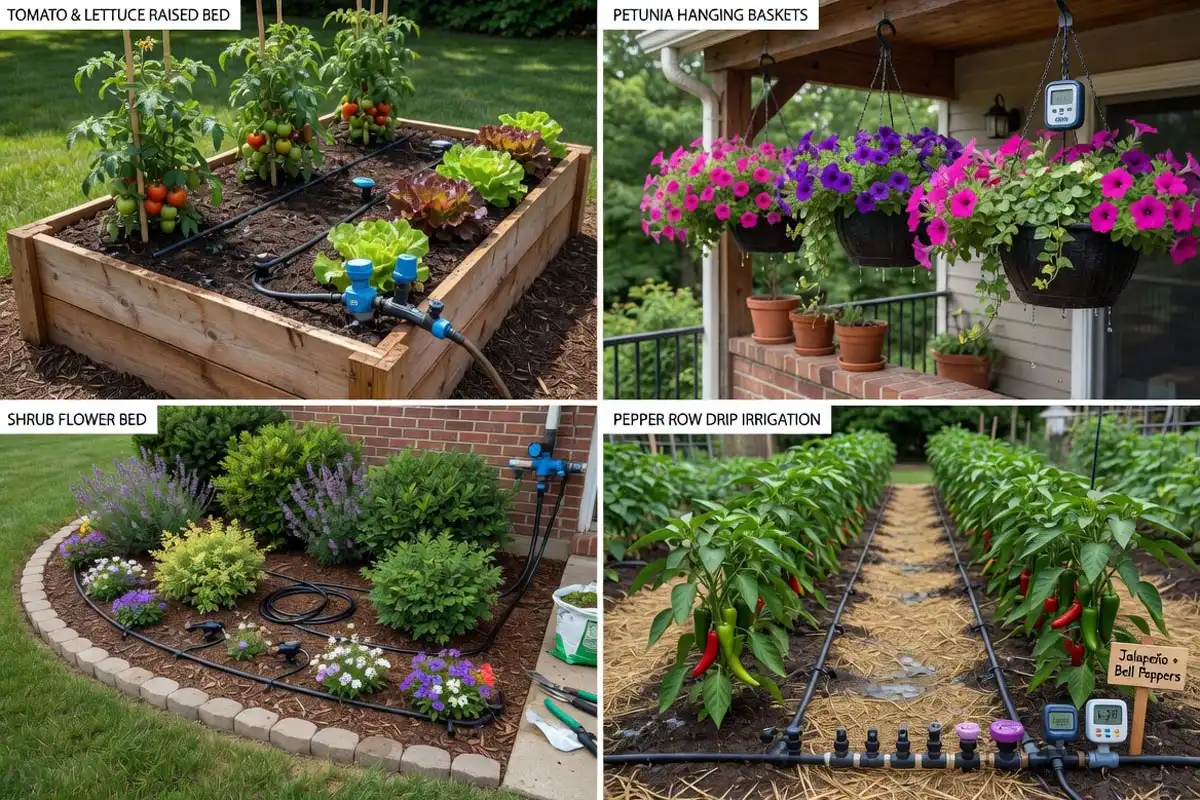

Types of Drip Irrigation Kits With Timer

Match the kit to the planting setup. Trying to water a row of tomatoes with a hanging-basket kit wastes time and money.

Raised Bed Kits

Raised bed kits cover two to three 4-by-8-foot beds. They include 50 feet of mainline, dripline with built-in emitters at 6- or 12-inch spacing, and a hose-bibb timer. Best for vegetables, herbs, and cut flowers.

Container and Hanging Basket Kits

These kits use ¼-inch supply tubing and small drippers rated at 0.5 GPH. Most cover 10 to 20 individual pots. Pick this type for patios, balconies, deck planters, and growing tomatoes in containers.

Landscape and Flower Bed Kits

Landscape kits ship with a mix of drippers, micro-bubblers, and micro-sprays. They handle shrubs, perennials, and ornamental beds with mixed water needs.

Vegetable Row Kits

Row kits run long mainline lengths (often 200 to 250 feet) with closely spaced drippers for in-ground vegetables. Useful for backyard market plots and home vegetable rows.

How to Choose the Right Drip Irrigation Kit With Timer

Run through this checklist before you click buy:

1. Square footage: Measure your beds. Most raised-bed kits cover up to 100 square feet; row kits can cover 800.
2. Plant count: Each plant needs an emitter. Count plants and pick a kit with that many drippers (or more for headroom).
3. Water pressure at the faucet: Standard home pressure runs 40 to 80 PSI. The pressure regulator handles the rest, but flag any low-pressure setups.
4. Timer features: Look for at least four start times per day, rain delay, and weekly scheduling. Smart timers add weather adjustment.
5. Tubing length included: Compare against the distance from your faucet to the farthest plant, then add 20 percent.
6. Expandability: Standard ½-inch and ¼-inch fittings let you grow the system later.
7. UV and frost resistance: Tubing that handles sun and freeze cycles lasts more than one season.
8. Warranty: A two-year warranty is the floor for a kit you plan to keep.

For watering math by crop and bed size, work through my notes on calculating water needs for crops.

Top 7 Drip Irrigation Kits With Water Timer Worth Considering

Here are seven kits I’d point a fellow grower toward, each with a clear use case. I matched the picks to the kit categories covered earlier so you can pull the one that fits your setup.

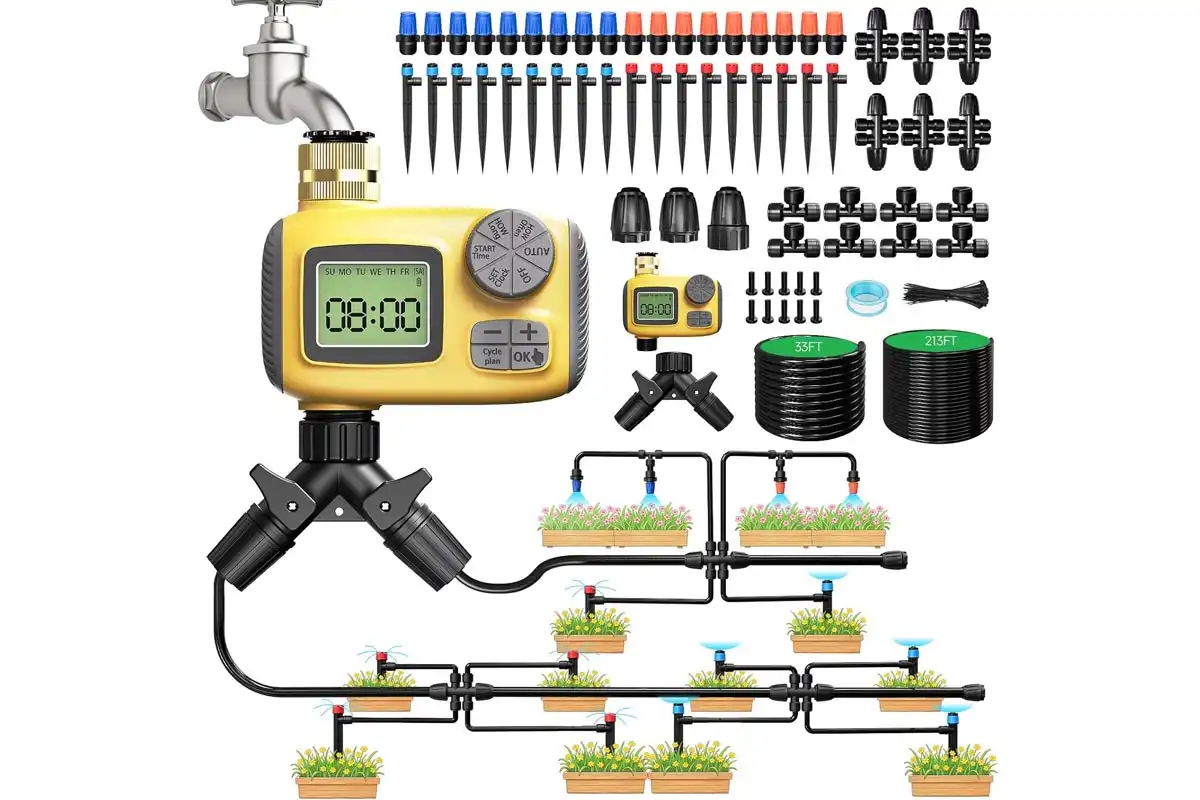

1. MQJIAZHI 246FT Drip Irrigation System With LCD Timer

MQJIAZHI 246FT Drip Irrigation System With LCD Timer

$67.99

96

Overall Score

Buy on Amazon

A solar-powered drip kit with 246 feet of tubing and a programmable LCD timer. MQJIAZHI is a newer brand focused on small-garden automation that doesn’t depend on a wall outlet.

Best for Patios, balconies, and mid-size beds where a corded timer is awkward. And best for solar-friendly patio gardens up to 15 pots.

Specifications:

• Tubing length: 246 ft
• Plant capacity: 15 pots
• Power: Solar panel + Type-C USB backup
• Timer modes: 25 settings (3 to 20 min, 12 to 96 hr intervals)
• Flow rate: 900 ml/min
• Connectors: Brass fittings

Buyers like the install speed but flag the plant-count cap. For larger beds, the Deepoter 165FT covers more emitters.

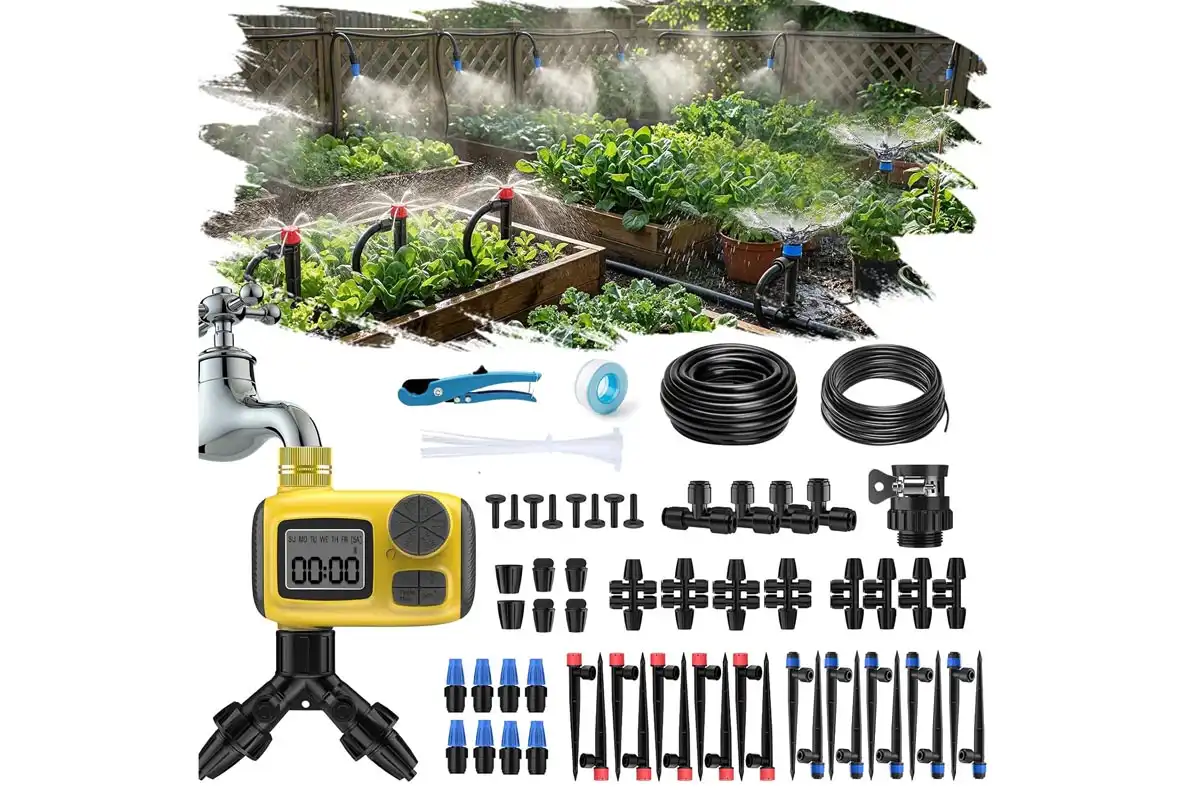

2. Deepoter 165FT Drip Irrigation System With Timer

Deepoter 165FT Drip Irrigation System With Timer

$61.99

95

Overall Score

Buy on Amazon

A water-pressure-driven drip kit running 165 feet of tubing with solid brass connectors and a programmable timer. Deepoter focuses on mid-size garden setups.

Best for raised beds and greenhouses with steady 35 to 45 PSI water pressure.

Specifications:

• Tubing length: 165 ft (½” mainline + ¼” branch)
• Pieces: 80
• Working pressure: 21.7 to 45 PSI (max 80 PSI)
• Emitters: 28 adjustable, 3 modes (mist, stream, drip)
• Connectors: Solid brass, rated up to 120 PSI

Most reviewers praise the brass fittings holding where plastic kits failed. If your faucet runs below 22 PSI, the ANLEOLIFE 82.4FT or HEKIWAY solar kit is a safer pick.

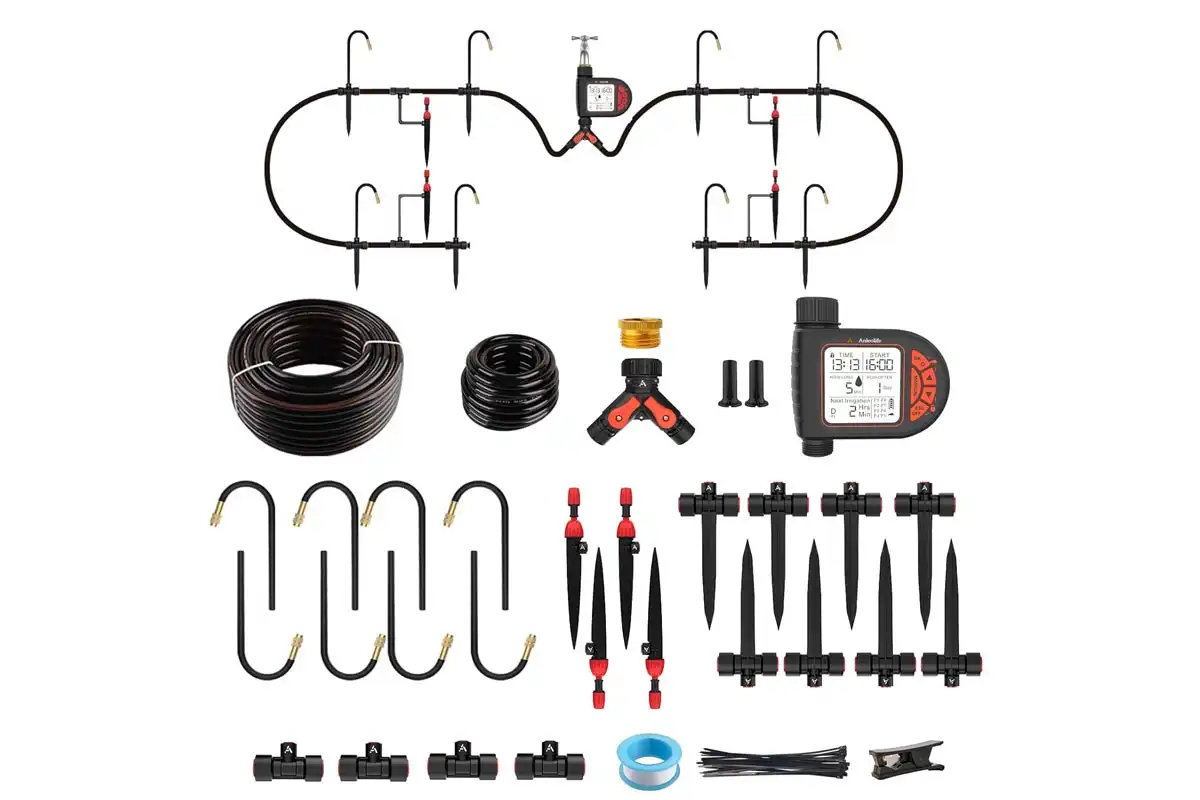

3. ANLEOLIFE 82.4FT Automatic Drip Irrigation Kit With Water Timer

ANLEOLIFE 82.4FT Automatic Drip Irrigation Kit With Water Timer

$61.99

100

Overall Score

Buy on Amazon

A two-zone drip kit with an LCD timer, Y-splitter built-in filter, and 82.4 feet of tubing. ANLEOLIFE makes budget-priced garden irrigation gear.

Best for split-zone planting where each section runs its own schedule.

Specifications:

• Tubing: 66 ft ½” PE mainline + 16.4 ft ¼” branch
• Schedules: 8 custom timer programs
• Power: Battery-powered
• Features: Rain delay, child lock, manual mode
• Waterproof rating: IP68
• Includes: Pipe cutter, sealing tape, bendable nozzles

Growers like splitting flowers from vegetables on one timer. For single-zone simplicity, the HIRALIY 50FT is easier.

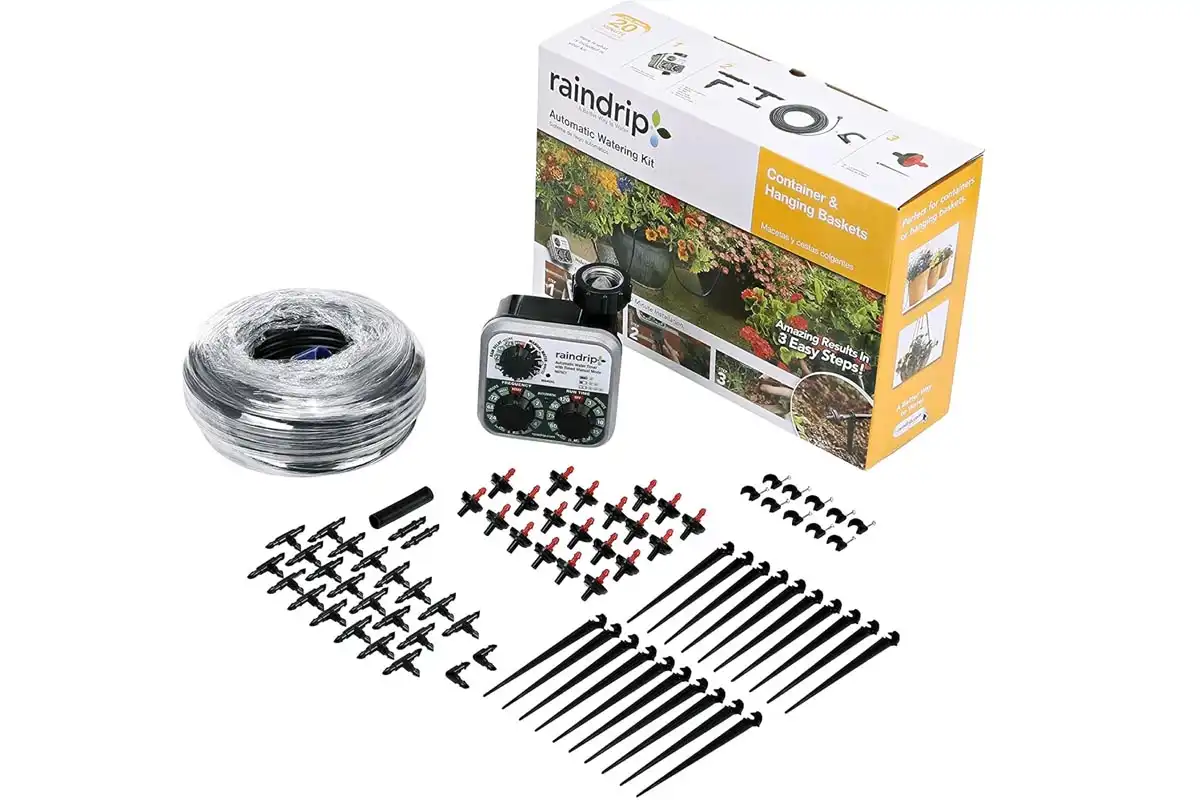

4. Raindrip R560DP Automatic Drip Irrigation System With Timer

Raindrip R560DP Automatic Drip Irrigation System With Timer

$35.98

84

Overall Score

Buy on Amazon

An dependable tool from Raindrip, a long-running drip brand under The Toro Company. The kit waters up to 20 individual containers.

Best for: Container gardens, hanging baskets, patio pots, and hanging baskets, deck pots, and patio containers up to 20 plants.

Specifications:

• Tubing: 75 ft of ¼” supply tubing
• Adapter: ¾” FHT
• Drippers: 20 pressure-compensating, ½ GPH
• Power: Battery-powered timer
• Included: 20 stakes, 10 clamps, tees, elbows, plug

Container growers report easy setup and steady watering all season. For raised beds, the Orbit Garden Box kit fits better.

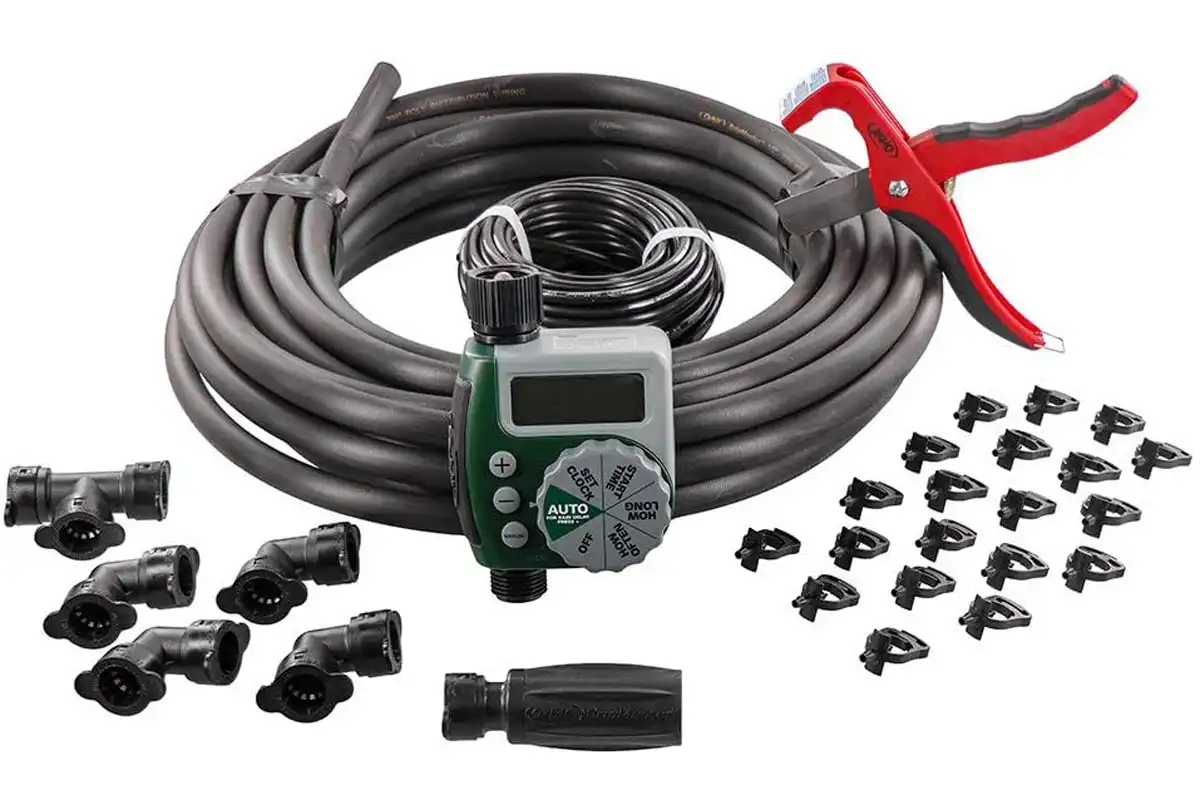

5. Orbit Automatic Garden Box Drip Watering Kit With Hose Faucet Timer

Orbit Automatic Garden Box Drip Watering Kit With Hose Faucet Timer

$69.95

82

Overall Score

Buy on Amazon

A pre-designed grid-pattern drip kit from Orbit, a North American watering company with over 100 active patents. Built around a single 4×16 raised garden box.

Best for: One raised garden box up to 64 sq ft. Best for a single 4×16 ft raised garden box.

Specifications:

• Coverage: 64 sq ft
• Tubing length: 50 ft
• Maximum pressure: 45 PSI
• Timer: 1-outlet digital, 1 to 240 min runtimes, 6 hr to 7 day intervals
• Filter + pressure regulator: 3-in-1 unit included
• Pattern: Closed-loop grid

Raised-bed growers like the grid uniformity right out of the box. For multiple beds, the Deepoter 165FT covers more ground.

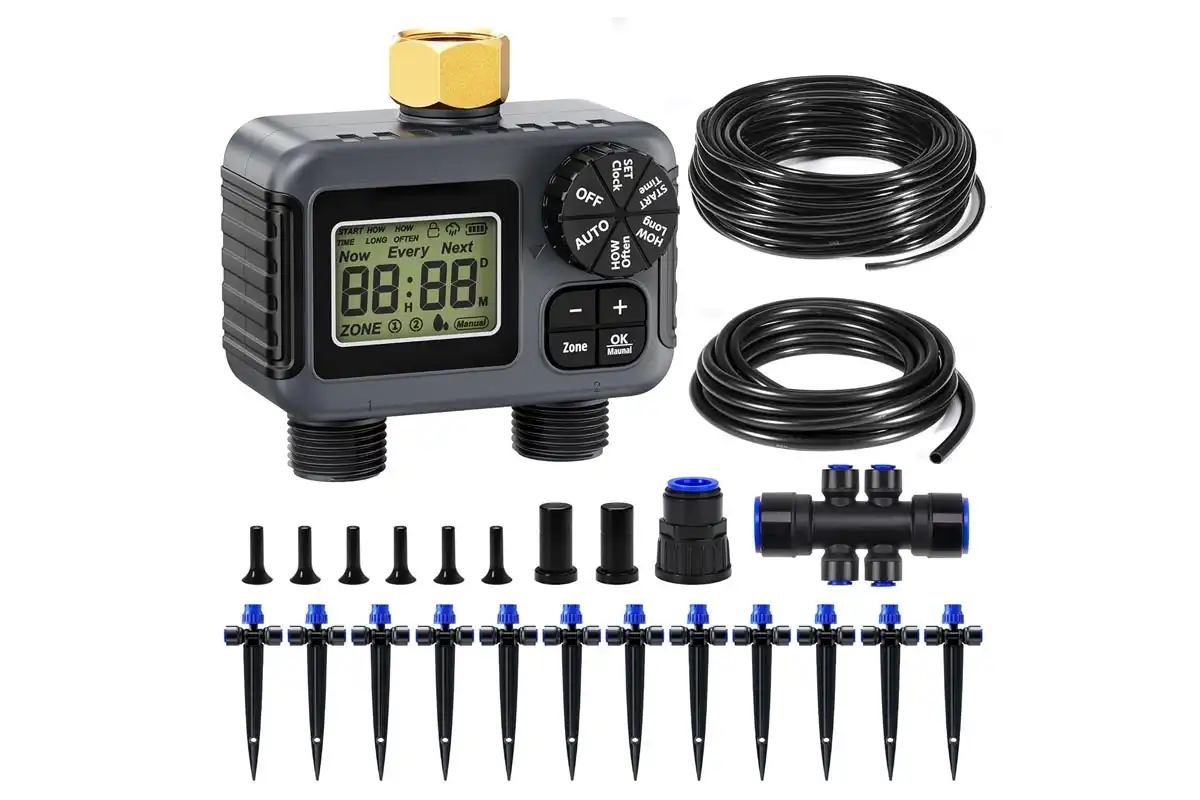

6. HIRALIY 50FT Automatic Drip Irrigation Kit With Garden Water Timer

HIRALIY 50FT Automatic Drip Irrigation Kit With Garden Water Timer

$52.99

85

Overall Score

Buy on Amazon

A two-zone drip kit with a quick-connect timer and 50 feet of tubing. HIRALIY targets DIY-friendly garden irrigation for new growers.

Best for: Small lawns, patios, and beginner gardens with two watering areas.

Specifications:

• Tubing: 40 ft ¼” + 10 ft main hose
• Pieces: 41
• Timer: 2 outlet zones, 1 to 7 day or 1 to 23 hr cycles
• Drippers: 12 adjustable (stop, micro drip, spray)
• Fit: Push-to-connect

First-time users praise the quick install. For longer runs, the MQJIAZHI 246FT covers more ground.

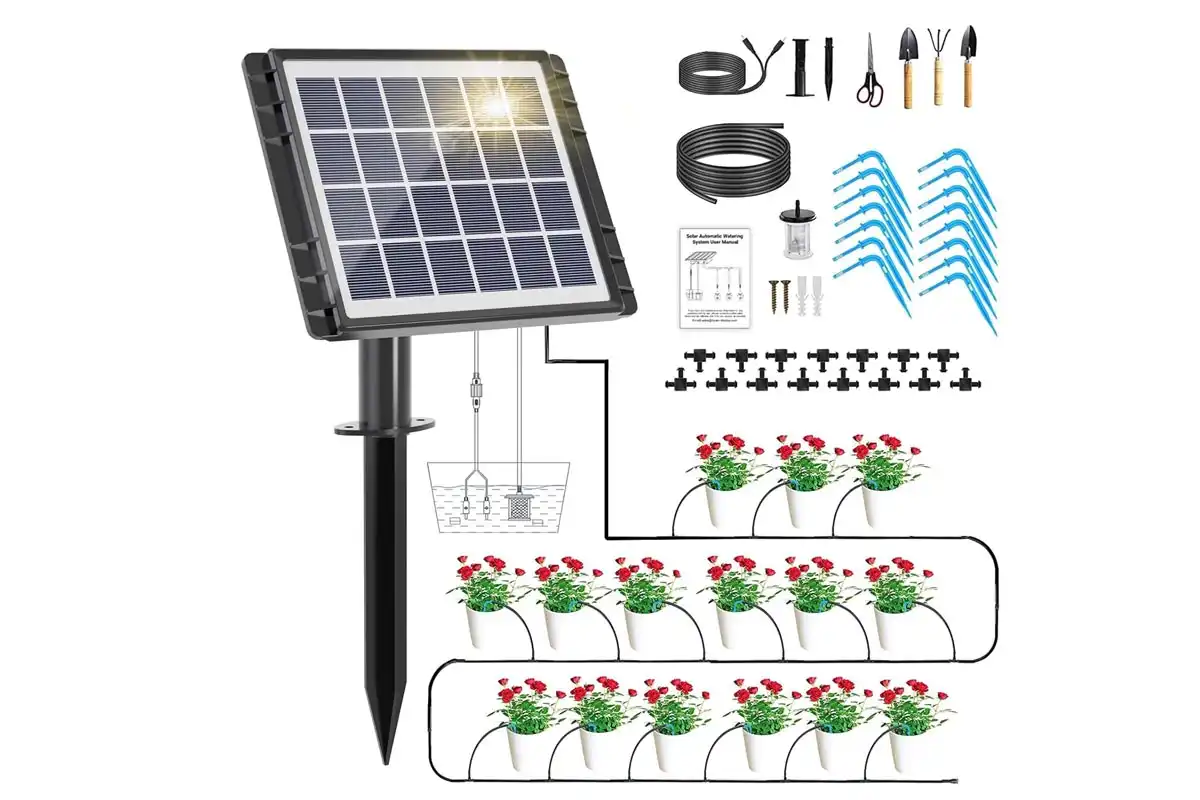

7. HEKIWAY 49FT Solar Drip Irrigation System With Auto Watering Kit

HEKIWAY 49FT Solar Drip Irrigation System With Auto Watering Kit

$33.99

80

Overall Score

Buy on Amazon

A solar-powered drip kit with 25 timer modes and Type-C backup charging. HEKIWAY targets indoor and outdoor plant automation in one unit.

Best for: Indoor potted plants, balconies, and small outdoor gardens up to 15 pots.

Specifications:

• Tubing length: 49 ft (15 m)
• Plant capacity: 15 pots
• Power: Solar panel + Type-C USB backup
• Timer modes: 25 settings (3 to 20 min, 12 to 96 hr intervals)
• Flow rate: 900 ml/min
• Smart alarm: Buzzer + flashing light for blockages or low water

Indoor plant owners like the Type-C backup for winter use. For outdoor raised beds, the Orbit Garden Box or Deepoter 165FT fits better.

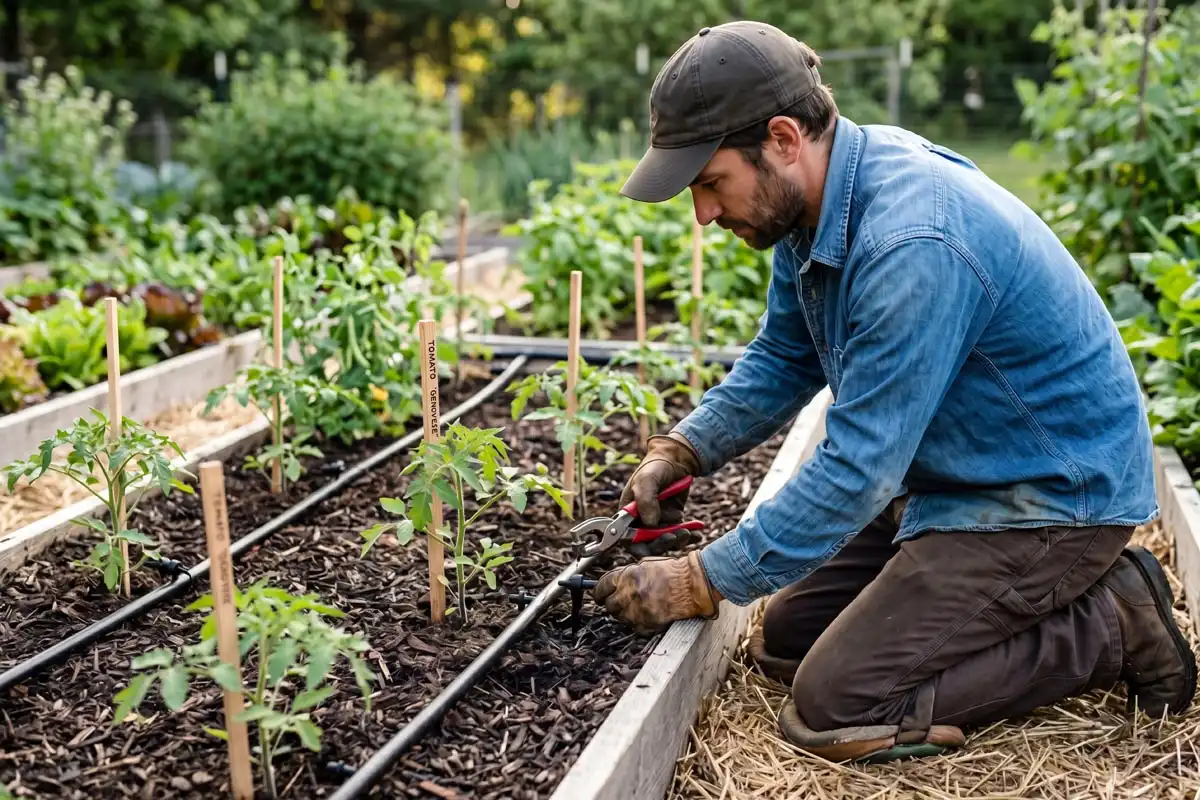

How to Install a Drip Irrigation Kit With Timer (Step-by-Step)

Most kits install in under an hour. The order is the same across brands.

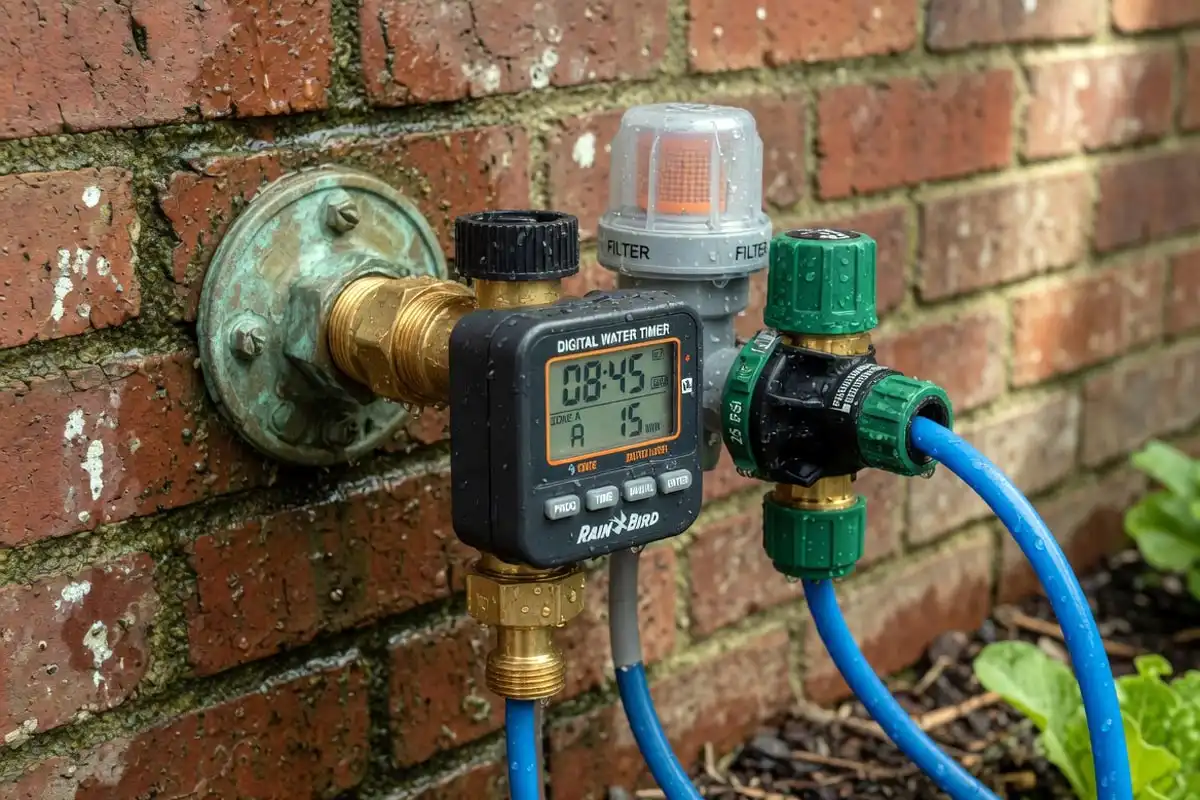

1. Attach the timer to the faucet. Hand-tighten the FHT connection. Insert batteries.
2. Connect the filter and pressure regulator in line, with the filter ahead of the regulator.
3. Run the mainline tubing along the bed edge. Stake it down every 3 to 5 feet.
4. Punch the mainline at each plant location with the punch tool. Insert a barbed connector.
5. Attach a dripper or run a short piece of micro tubing to the plant base.
6. Cap the line ends with figure-8 closures or end caps.
7. Program the timer, then run a full test cycle. Walk the line and check every emitter.

Safety note: Drain and remove the timer before the first hard freeze. Trapped water cracks the housing.

Programming the Timer: Schedule Settings That Work

Set the system to run early in the morning, between 4 a.m. and 7 a.m. Wind is low and evaporation is at its lowest. Most beds with 1 GPH drippers need 30 to 45 minutes per cycle. Hot, sandy soils may need a second short cycle in late afternoon. Cool spring and fall weather usually calls for two or three cycles per week. Summer heat may push that to daily. Use the rain delay after a soaking storm so you skip a cycle without rewriting the schedule. Pair the system with a modern soil moisture meter to dial in run times by feel and reading, not guesswork.

Common Mistakes to Avoid

• Skipping the pressure regulator. Home pressure blows out drip tubing fittings within minutes.
• No filter. Sediment clogs every emitter on the line. Add a 150-mesh filter.
• Mixing tubing sizes incorrectly. Use ½-inch as the mainline and ¼-inch only as branches.
• Too many emitters on one line. Pressure drops at the far end. Cap each run at the dripper count listed on the kit specs.
• Mid-day watering. Evaporation wastes water. Program for early morning.
• Leaving the timer outside in winter. Pull it indoors after the first frost. A frozen timer is a dead timer.

A mulching layer over your drip lines holds moisture longer and shields the tubing from UV.

Maintenance and Winterization

At season’s end, open the end caps and flush each line until water runs clear. Pull the timer, remove the batteries, and store both indoors. Drain the mainline by lifting one end so water runs back to the source. In spring, reinstall the timer, replace batteries, and walk the lines to check every emitter for clogs or damage from rodents.

FAQs on Drip Irrigation Kits With Water Timer

Do drip irrigation kits come with a timer included?

Some do, some don’t. Read the listing carefully. Kits from Raindrip, Orbit, and HIRALIY usually bundle a timer. Kits from Rain Bird and DripWorks often sell the timer separately.

How long should a drip irrigation system run with a timer?

Most raised beds with 1 GPH drippers need 30 to 45 minutes per cycle, two to three times a week. Sandy soils run shorter and more often. Clay soils run longer and less often.

What size drip irrigation kit do I need for a raised bed?

A standard 4-by-8-foot raised bed uses around 50 feet of dripline and 12 to 20 emitters. Two-bed kits cover most home gardens. Buy a kit rated for one more bed than you have.

Do I need a pressure regulator with a drip irrigation kit?

Yes. Home water pressure runs 40 to 80 PSI. Drip tubing is rated for 25 to 30 PSI. Without a regulator, fittings blow apart and emitters spray instead of drip.

Can I leave a drip irrigation timer outside year-round?

Only in mild climates that stay above freezing. In Kansas and most of the Midwest, pull the timer indoors before first frost. Trapped water cracks the housing.

How much water does a drip irrigation kit save compared to sprinklers?

Drip systems use 30 to 60 percent less water than overhead sprinklers, according to research from land-grant universities. The savings come from less evaporation and zero runoff between rows.

Can I expand a drip irrigation kit with timer later?

Yes. Standard ½-inch mainline and ¼-inch micro tubing accept off-the-shelf fittings, drippers, and dripline from most brands. Buy from one brand line where possible to keep thread sizes matched.

Final Thoughts

A drip irrigation kit with timer pays for itself the first season in time saved and water saved, but only when the kit fits the garden. Match the timer type to how hands-on you want to be, the tubing length to your layout, and the dripper count to your plants. Install it once, set the schedule, and let it run.
